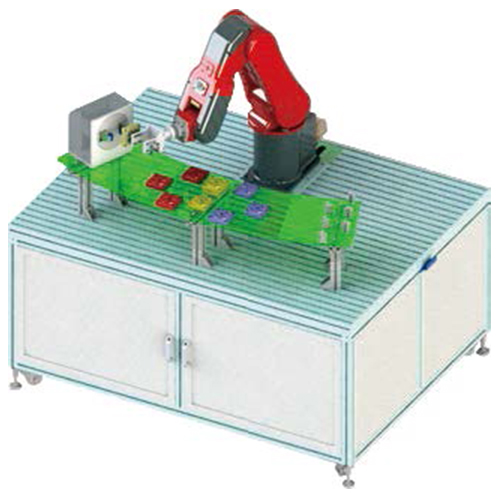

JR605 industrial robot feeding and blanking skills training platform

JR605 industrial robot feeding and blanking skills training platform

Application product

Functional description

The practical training platform can carry out the training of industrial robot feeding and blanking application skills. It is composed of warehouse module, machining simulation module, finished goods stacking warehouse module, public platform and handling robot module: JR605 robot, double-position suction chuck fixture, feeding and blanking workpiece and simulated machine tool unit and the practical training workstation.

Can carry out training projects

Demonstration of the basic operation of the industrial robot

Demonstration of the basic operation of the industrial robot

Demonstration of instruction of the Industrial robot

TCP calibration instruction

Demonstration of establishing the workpiece coordinate system

Simple trajectory, continuous trajectory and spatial complex trajectory demonstration

Basic programming operation of the industrial robot

Basic command operation and position point setting of industrial robot

Comprehensive application of industrial robot stacking practice and training

Industrial robot simulation in feeding and blanking of tooling practical training application

Equipment configuration list

Serial numberName and SpecificationUnitNumberRemarks
1JR605 Robotset1HUASHU
2Robot double station clampset1HUASHU
3The workstationsheet1HUASHU
4In field artifactspcs6HUASHU
5Simulated machine tool unitset1With workpiece clamping, 90 degree rotation machining simulation, signal feedback in place, detection, etc
6Pneumatic componentsitem1Including vacuum generator, pneumatic control, pneumatic actuator and pneumatic auxiliary material, etc
7Other accessoriesitem1Connect cables, screw fasteners, supporting electrical control components, etc
