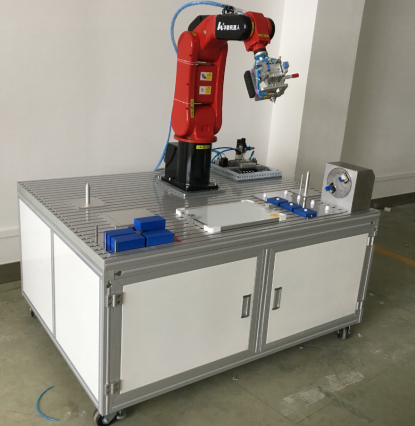

JR605 industrial robot multi-functional training platform

JR605 industrial robot multi-functional training platform
JR605 industrial robot multi-functional training platform

Functional description

The training platform is composed of JR605 robot, multi-functional training fixture, modular experimental comprehensive training platform, and various functional training modules (including machining feeding and blanking training module, writing training module, palletizing training module, spraying training module, and robot TCP calibration module)


Can carry out training projects

Basic operation demonstration of the industrial robot

Demonstration of instruction of the Industrial robot

TCP calibration instruction

Demonstration of establishing the workpiece coordinate system

Simple trajectory, continuous trajectory and spatial complex trajectory demonstration

Basic command operation and position point setting of the industrial robot

Comprehensive application of Industrial robot palletizing practical training

Comprehensive application of Industrial robot off-line programming (writing) practical training

Comprehensive application of Industrial robot spraying practical training

Comprehensive application of Industrial robot grinding practical training

Comprehensive application of Industrial robot simulation in feeding and blanking of tooling practical training

Equipment configuration list

Serial numberName and SpecificationUnitNumberRemarks
1HSR-JR605 robotset1HUASHU
2Modular experiment 1500*1150*750set1HUASHU

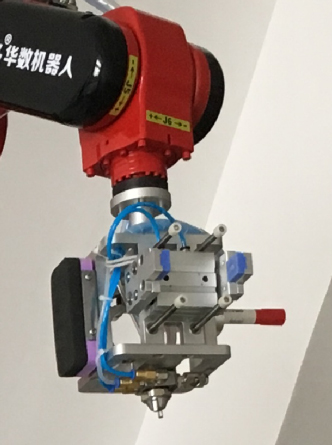

3Multi-functional training fixtureset1HUASHU
4Palletizing practical training tooling componentsset1Non-standard customization
5Machining feeding and blanking practical training tooling componentsset1HUASHU
6Spray practical training tooling componentsset1HUASHU
7Writing practical training tooling componentsset1HUASHU
8Calibrate practical training tooling componentsitem1HUASHU
9Grinding practical training tooling componentsset1HUASHU
9Accessoryitem1/

Related information download

JR605 industrial robot multi-functional training platform.pdf

JR605 industrial robot multi-functional training platform.pdf

download
