Functional description

The platform is designed on the basis of "industrial robot operation adjustment standard," including the operator and technician modes.

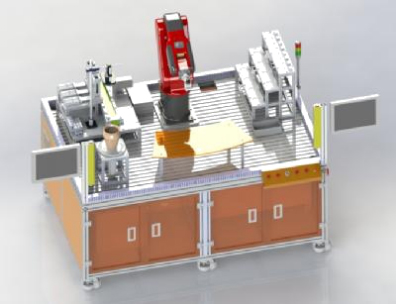

The competition platform integrates HSR-JR605 six-axis robot, automatic feeding module, visual detection module, three-dimensional warehouse module, spraying module (including rotating axis), coding module, and general control system module. The competition platform requires contestants to complete fixture installation and adjustment, robot teaching programming, visual system debugging, control system debugging, host computer general control system debugging and other competition tasks within the specified time according to the requirements of the competition task, and can also meet the daily teaching requirements of the industrial robot major.


Can carry out training projects

Industrial robot fixture installation and debugging

Online programming and debugging of industrial robots

Off-line programming and debugging of industrial robots

application integration of spray simulation

application integration of Industrial robot palletizing

PLC programming and application

Configuration, debugging and application of master control software of upper computer

Platform general control system configuration, debugging and application

Intelligent vision system configuration, debugging and application

Host computer control software, platform control system, vision system, robot control system joint configuration, debugging and application

Equipment configuration list

Serial numberName and SpecificationUnitNumberRemarks
1HSR-605 industrial robotset1HSpad teaching Pendant
2Foundation workbenchset1Aluminum profile structure platform
3Modular fixtureset1nozzle and absorption function
4Automatic feeding moduleset1circular, square, rectangular three well warehouse
53D Storage moduleset1Step storage of aluminum profiles
6Palletizing moduleset1Aluminum structure + curved panel
7Rotational spraying moduleset1With the seventh joint
8Visual detection moduleset1enable to detect workpiece color, size and location information
9General control softwareset1Independent development
10Off-line programming software INC Roboset1Independent development
11General control PLCset1Siemens
12Quiet oil-free air pumpset1Silicon
