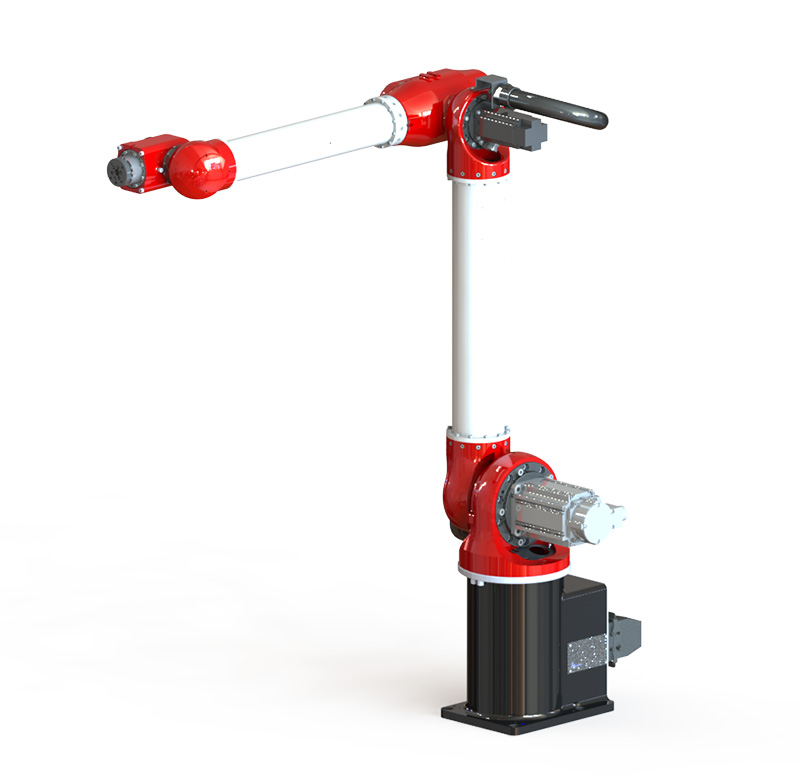

The new generation of HSR-BR610, based on the BR series, is further optimized and upgraded, with faster speed, stronger load capacity and higher protection grade.
Advantage 1: Small installation footprint. The base is very small, and the floor space is less than 0.06m2.
Advantage 2: High precision and high flexibility. The average repeat positioning accuracy is minimum +0.03mm, the maximum 0.05mm. Not only does it have a universal 6-axis function, but when there is not enough space for using the general robot function, it is also possible to program the inner rotation mode to achieve a different approach.
Advantage 3: Light weight, able to be installed in any direction. The body weighs about 61 kg.
Advantage 4: longer arm and stronger load capacity. The lightweight design, high-speed motor and high-precision reducer are used to increase the robot arm length to 1310mm and the maximum load of 10kg.
|Degree of freedom||6|

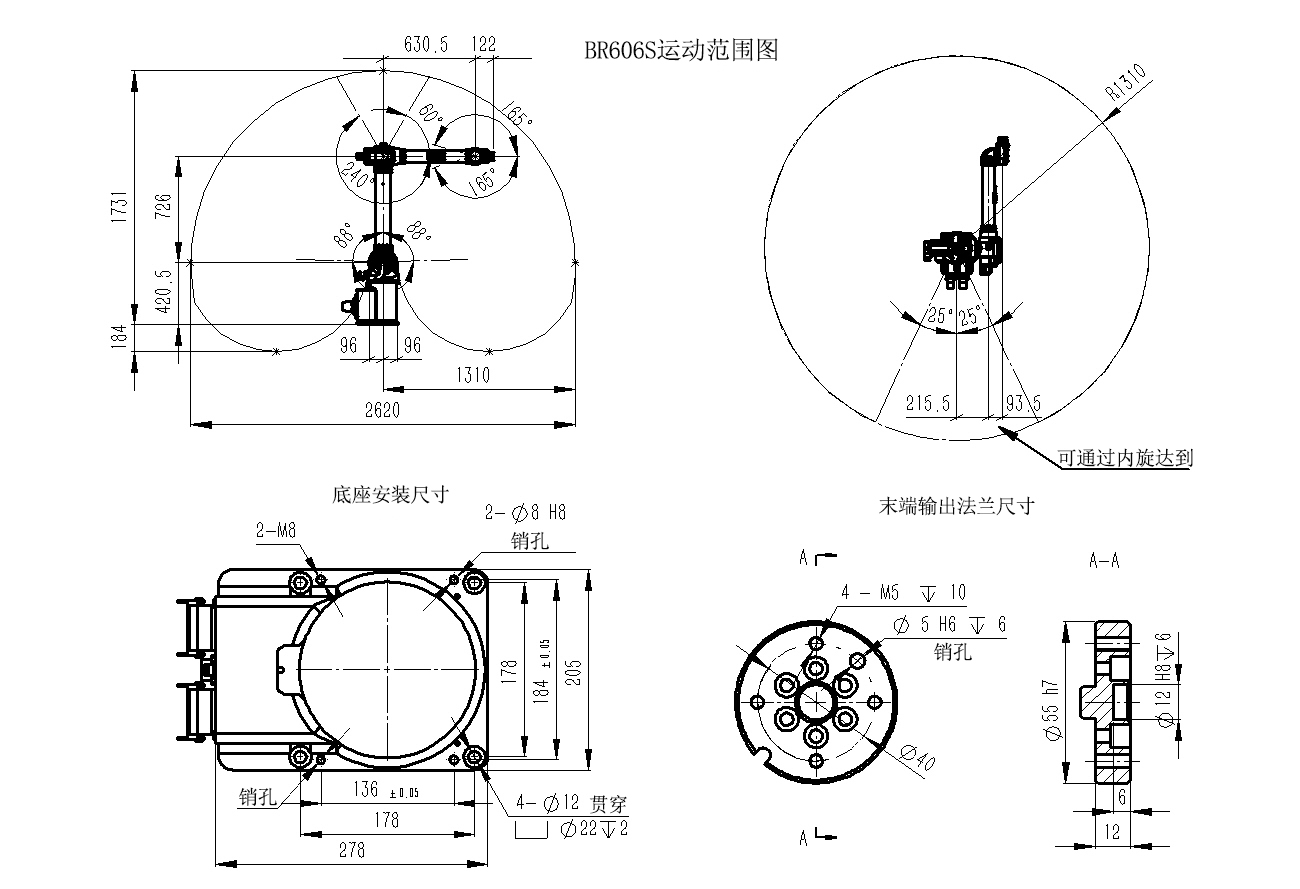

|Maximum working radius||1310mm|
|Range of motion||J1||±155°|
|Allowable moment of inertia||J6||0.15kg㎡|
|other||Avoid contact with flammable, explosive or corrosive gases and liquids. Keep away from electronic noise sources (plasma).|
|Cable Length of Instructor||8metre|
|Body-cabinet connection length||3metre|
|I/Oparameter||Digital: 32 inputs, 31 outputs|
|Rated voltage||Single phaseAC220V|

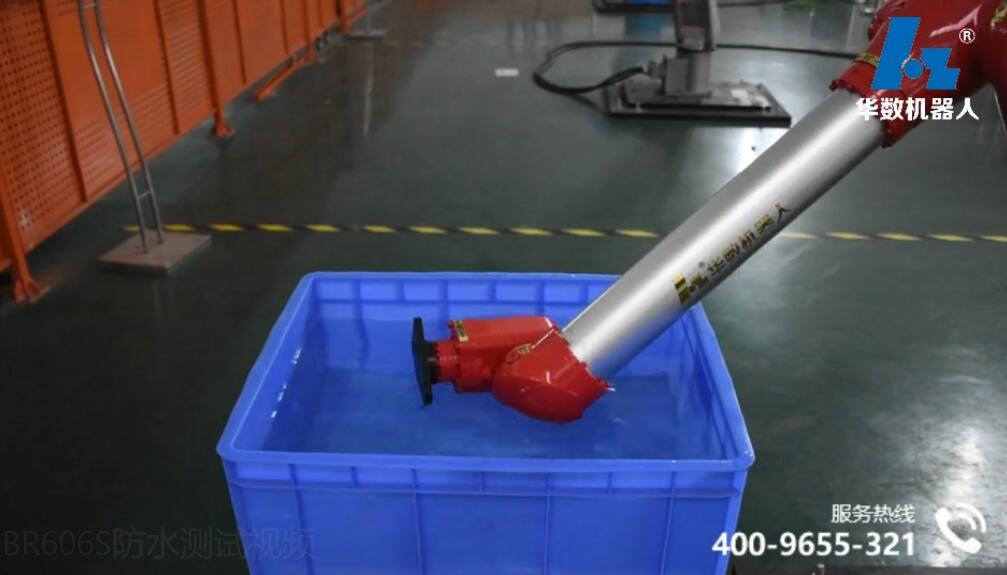

|Body protection grade||IP54，the front end of armIP67|
|Installation method||Ground installation、upside down installation、side mount installation、able to be installed in any direction|
|Control cabinet protection grade||IP53|
|Control cabinet size||500（wide）×270（thick）×530（high）-can stand|
|Control cabinet weight||38KG|
