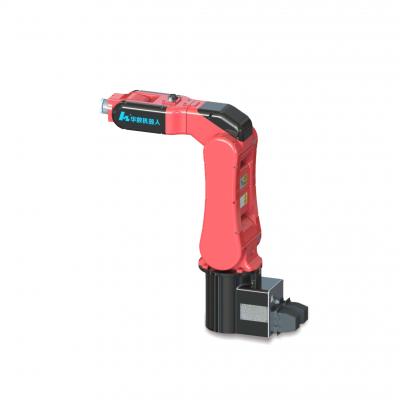

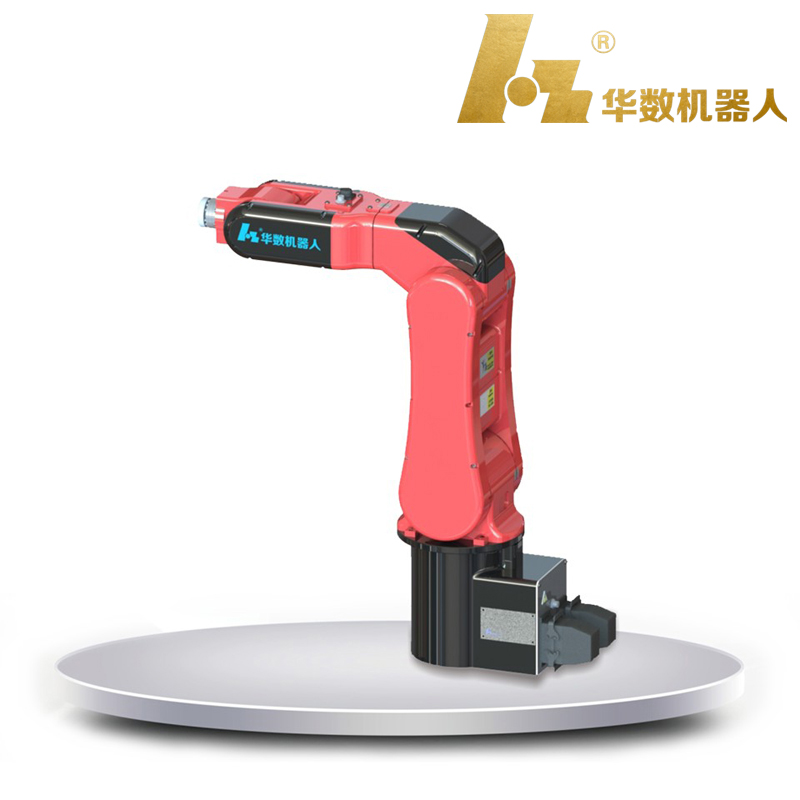

HSR-JR605 is a small multi-purpose robot with a small size, small size, light weight, high joint speed, fast dynamic response, load of 5kg, and low investment and high output. It meets the requirements of fast pick and place and is extremely flexible. The utility model has the advantages of compact structure, high repetitive positioning precision and fast response while maintaining the versatility of the six-axis robot. The six-axis robot efficiently performs tasks for loading, unloading, sorting, sanding, and other machining applications.
1. Running fast. While acting in the largest range, one loop is within 8s.
2. Repeated positioning accuracy is high. Repeatable positioning accuracy of ±0.02mm, suitable for high-precision operations.
3. Low cost. The core components are produced independently and the cost is effectively controlled.
4. Lightweight. The weight of the whole machine is controlled within 55kg, which is convenient for transportation and installation.
5. Miniaturization. It has a small footprint and is suitable for small spaces.
|Degree of freedom||6||6|
|Maximum working radius||746mm||854mm|
|Range of motion||J1||±200°|
|Allowable moment of inertia||J6||0.1kg㎡|
|J5||0.36 kg㎡||0.3 kg㎡|
|Allowable torque||J6||8 N·m|
|J5||16 N·m||15 N·m|
|other||Avoid contact with flammable, explosive or corrosive gases and liquids. Keep away from electronic noise sources (plasma).|
|Cable Length of Instructor||8metre||8metre|
|Body-cabinet connection length||3metre||3metre|
|I/Oparameter||Digital: 32 inputs, 31 outputs (one for control cabinet fault indicator output)||Digital: 32 inputs, 31 outputs (one for control cabinet fault indicator output)|
|Rated voltage||Single phaseAC220V|
|Body protection grade||IP54|
|Installation method||Ground installation, upside down installation, side mount installation|
