High speed. With the innovative structure, the robot body is light in weight, and the robot has a small motion inertia from the inside. The high-speed motor combined with the internal rotation function enables fast stamping, CNC loading and unloading and other application stations.

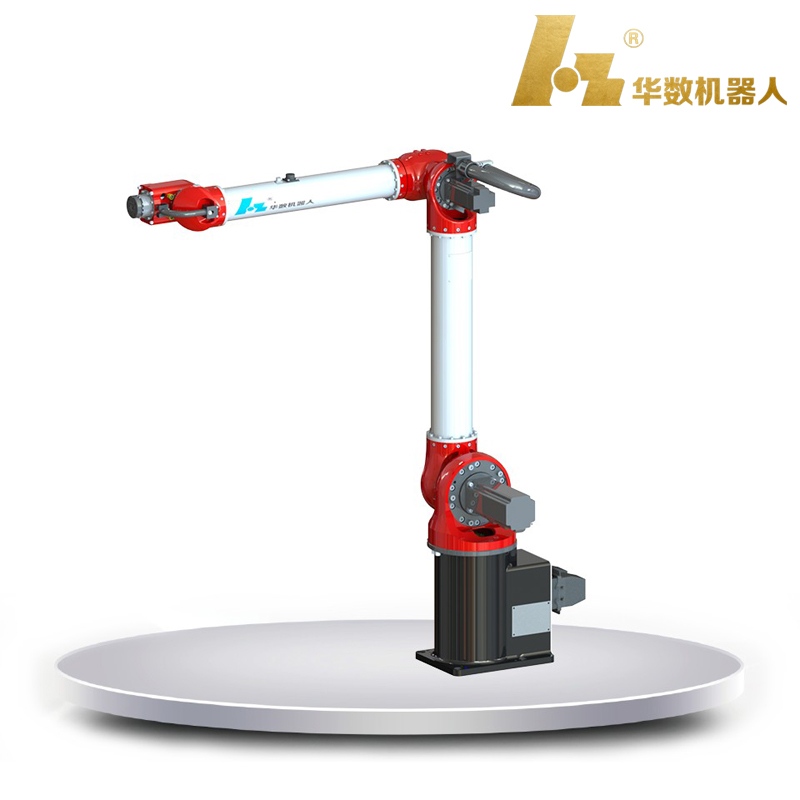

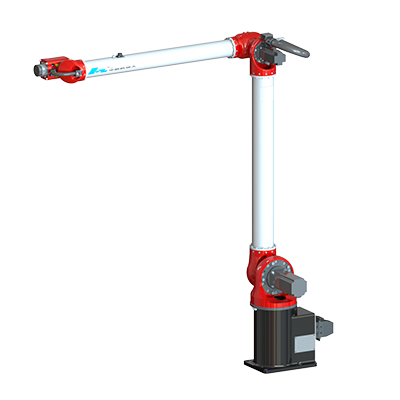

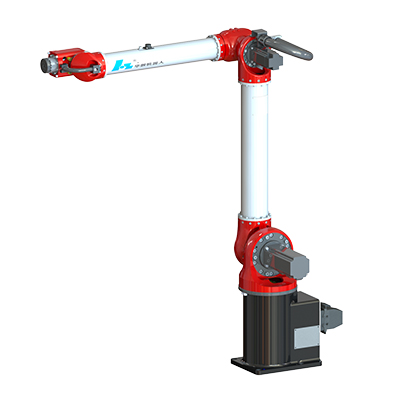

As for the handling between stations, HSR-BR606 covers only the base area, making it easy to flip the workpiece at high speed. 1800mm standard handling time can control the beat 5s
Feature 1: 360°full coverage. No dead ends.
Feature 2:5-axis and 6-axis of Highly protected version can withstand water spray in any direction.
Feature 3:Human-computer collaboration
Feature 4: Small footprint.
Feature 5: High precision and high flexibility.
Feature 6: High speed and small inertia.
Feature 7: Light weight, able to be installed in any direction.
Feature 8: Modular, serialized, customized.
Feature 9: Cost-effective.
|Degree of freedom||6|

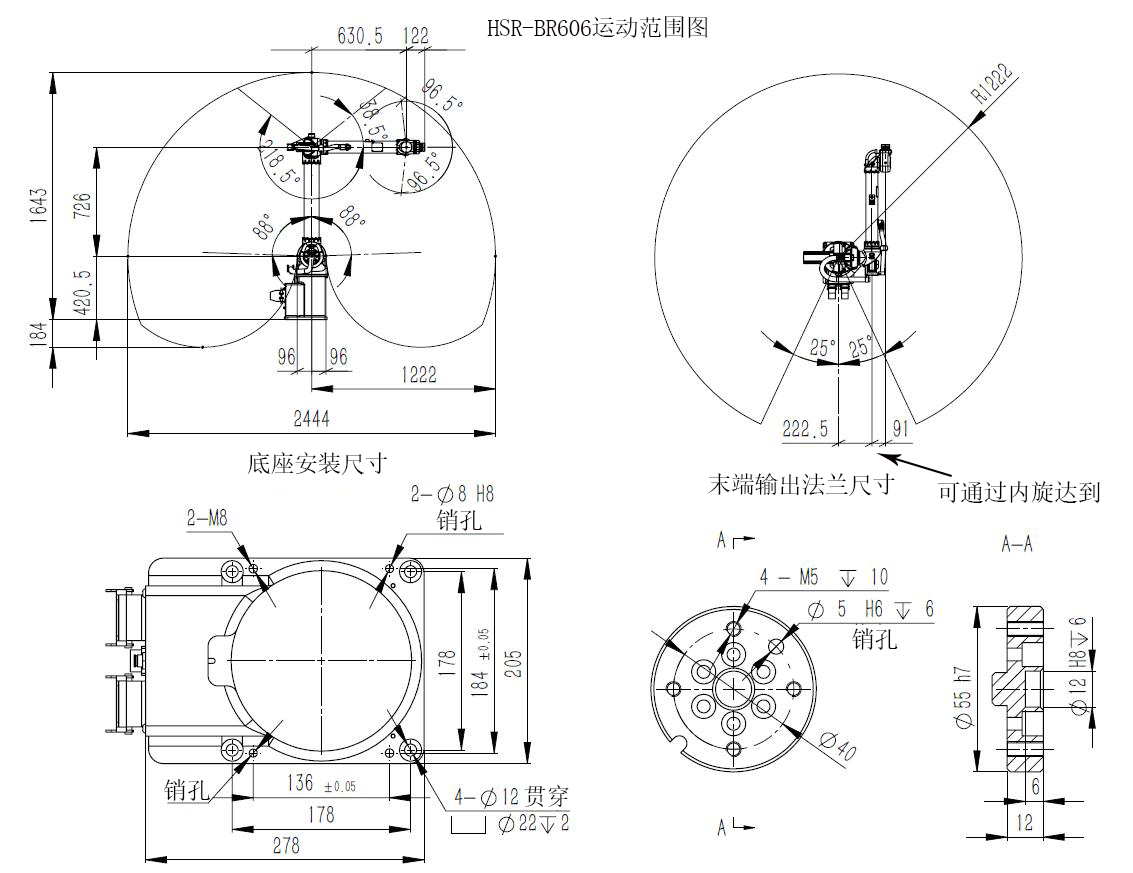

|Maximum working radius||1222mm|
|Range of motion||J1||±155°|
|Allowable moment of inertia||J6||0.15㎏㎡|
|other||Avoid contact with flammable, explosive or corrosive gases and liquids. Keep away from electronic noise sources (plasma).|
|Cable Length of Instructor||8metre|
|Body-cabinet connection length||3metre|
|I/Oparameter||Digital：32 inputs, 31 outputs (one for control cabinet fault indicator output)|
|Rated voltage||Single phaseAC220V|
|Body protection grade||IP54|
|Installation method||Ground installation|
